Sound Card 2 – w/SD Card and Speaker
$40.00

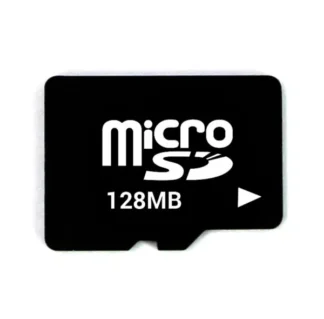

Sound card 2 has a USB port, external Micro SD capabilities up to 512Mb memory and is UART compatible for computer control. Specifically designed for our controller card it can play 2 sounds: Gates active, and Gates Idle.
12 in stock
Description
When either Sound Card 1 or Sound Card 2 is connected to your computer via the USB port it shows as a drive connected for simple drag and drop sound file transfers. This sound card is compatible with any system that has an open collector that can drive one of the selection pins to ground. The selection switches determine if the file plays until the ground is lifted 1, 2 ON, 3 OFF or to loop continuously 2 off. See the diagram for more options like computer control. See files in memory for naming convention and to confirm sound card is working.
Includes
Select Wire for gate controller, Speaker and different bell sounds including a wigwag and farm ambiance. More sounds can be loaded from our free sound library.
Additional information
| Weight | .5 lbs |
|---|---|
| Dimensions | 2 × 2 × 1 in |
| Computer Interface | UART |
| Playable Formats | MP3 and WAV |
| Amplifier | 5W Class D |
| Sampling (KHz) | 8 / 11.025 / 12 / 16 / 22.05 / 24 / 32 / 44.1 / 48 |
| DAC Output | 24 bit |
| Dynamic Range | 90dB |
| SNR | 85dB |
